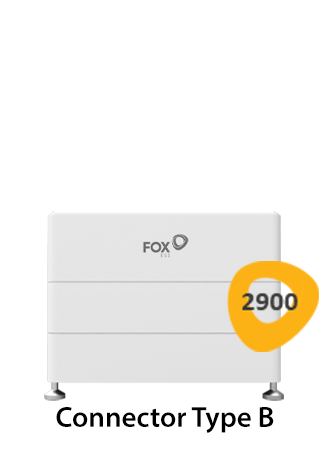

Fox ECS HV ECM2900 Connector Type B, 8.64kWh 1x Master 2x Slave

Fox ECS HV ECM2900 Connector Type B, 8.64kWh 1x Master 2x Slave

Login to see price
Login to see price Login to see price
Sold out
This part is made up of the following items: 2 x FE-HV-ECS-2900 Fox ECS 2.88kWh HV Battery (Slave) V2.0 Connector B   1 x FE-HV-ECM-2900 Fox ECS 2.88kWh HV Battery (Master) V2.0...

This part is made up of the following items:
2 x FE-HV-ECS-2900 Fox ECS 2.88kWh HV Battery (Slave) V2.0 Connector B
1 x FE-HV-ECM-2900 Fox ECS 2.88kWh HV Battery (Master) V2.0 Connector B

Fox ECS 2.9kWh CONNECTOR TYPE B - Stack of 3 (8.64kWh Useable Storage) Incl. Master

ECM2900

  • 2.88kWh Capacity
  • Scalable to 20.16kWh
  • 90% Depth of Discharge
  • Wide Temperature Tolerance
  • Easy Installation
  • CAN/RS485 Communication
  • High Voltage

The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.

Weight: 99.5kg

Dimensions (Width, Hight, Depth): 570mm x 470mm x 380mm

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)

IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2's of the ECS batteries. We stock both the Connector type A  and Connector type B variations.
