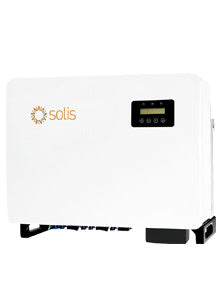

Solis 50kW S5 3 Phase 5x MPPT - DC

Solis 50kW S5 3 Phase 5x MPPT - DC

Login to see price
Login to see price Login to see price
Sold out
Rating: 50,000W Phases: 3 S5-GC50K - Series 5 Three Phase Grid-Tied Inverter Product Features Max. efficiency of 98.7%  Type-II over-voltage surge protection for both DC and AC Wide voltage range -...

  • Rating: 50,000W
  • Phases: 3

S5-GC50K - Series 5 Three Phase Grid-Tied Inverter

Product Features

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
  • Max PV DC Power of 75kW
  • 32A input per MPPT, 16A input for each PV string
  • Maximum output power of 55kW
  • 5 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated and C5 Anti-Corrosion Level
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • DC reverse-polarity protection
  • Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

NRS-097-2-1 Certified

German and Dutch Installation Manuals still pending from the manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. We will not be held liable for any product malfunctions as a  result of incorrectly installed systems.

Important

Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.
